Courtesy: Sameer Malkhare – Automobile Design Blog(overtake.wordpress.com)

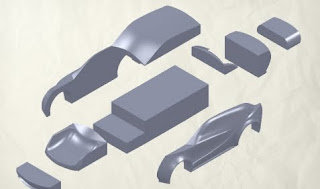

Now that the model was properly knitted, and converted into a solid without too much difficulties, time for splitting it up into parts which can me CNC milled. To make a physical model out of timber /soft wood, the 3 axis CNC router in the RMIT workshop demanded every single part / piece to be less than 90 mm – coz thats what the depth of the Drill bit was…..still it was recommended by Paul, the one man army at the workshop – that the parts should be 80 mm deep to be on the safer side.
And off course………..after all the above parts will be milled and glued together…….and with the wheels in their respective place…the car should look very close to what we see below -
Now that the model was properly knitted, and converted into a solid without too much difficulties, time for splitting it up into parts which can me CNC milled. To make a physical model out of timber /soft wood, the 3 axis CNC router in the RMIT workshop demanded every single part / piece to be less than 90 mm – coz thats what the depth of the Drill bit was…..still it was recommended by Paul, the one man army at the workshop – that the parts should be 80 mm deep to be on the safer side.
And off course………..after all the above parts will be milled and glued together…….and with the wheels in their respective place…the car should look very close to what we see below -
